VOCOM Mini

VOCOM Mini is a compact diagnostic hardware tool designed for the maintenance of trucks, buses, construction machines, boats and stationary engines. It offers full wireless capability.

VOCOM 2+ Mini

VOCOM 2+ Mini is the latest generation of VOCOM hardware, introduced in 2025.

  • Advanced security features
  • Meets RED cybersecurity requirements
  • Wireless and Ethernet connectivity capabilities

Part number

  • 88894310 - for the EU market and others
  • 88894320 - for the North American market

More information
VOCOM 2+ Mini leaflet
VOCOM 2+ Mini specification

Test

VOCOM II Mini

VOCOM II Mini was available on the market from 2017 to 2025. It is now superseded by VOCOM 2+ Mini.

  • Wireless capability

Part number
88894200

More Information
VOCOM II Mini specification

Test

The VOCOM 2+ Mini kit

The VOCOM 2+ Mini kit includes:

  • A Wi-Fi adapter that is used to configure the VOCOM Mini in access point mode.
  • A VOCOM 2+ Mini operation manual with configuration instructions.
  • The VOCOM 2+ Mini device.

You can also download the leaflets with concise instructions from the Downloads page.

Main features

Portable vehicle communication interface

Small, light weight and powerful – fits in your pocket

Secure and fast Wi-Fi communication

Communicates over 2.4 GHz and 5 GHz Wi-Fi networks up to 150 Mbit/s – no cables required

Indicator lights

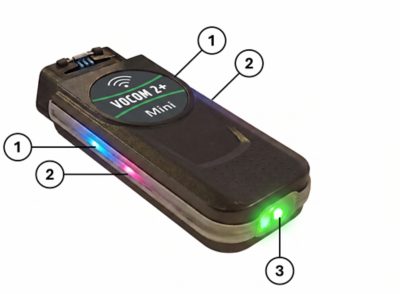

VOCOM Mini LED indicators
  1. Connectivity indicator
  2. Status indicator
  3. Power indicator

Connectivity indicator

  • Blue light.
  • Blinks when connecting.
  • Stable light when connected.

Status indicator

  • Green light when starting up.
  • The light is off when the device is ready to operate.
  • Red light when errors are stored in the memory.
    Note: Stored errors do not prevent you from using the device. You can find more information about the errors in Troubleshooting.

Power indicator

  • Blinks when starting up.
  • Stable light when ready to operate.
  • The color of the light indicates the battery condition of the connected vehicle or the equipment. The device itself has no internal battery.



Battery indicator color (vehicle/equipment)Battery condition12 V Battery24 V Battery
GreenBattery level normal> 12.15 V> 24.3 V
OrangeBattery level low11.6 V – 12.15 V23.2 V – 24.3 V
RedBattery level critically low< 11.6 V< 23.2 V

Reset button

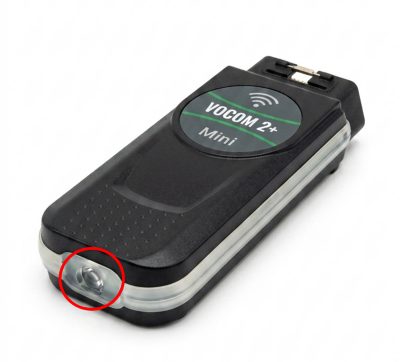

Figure: Reset button on VOCOM Mini

Press and hold the reset button until you hear:

  1. One short beep indicates the reset button is pressed.
  2. Hold the button pressed a little longer. Three short beeps indicate the VOCOM device is in Android mode/Wi-Fi direct mode of operation.
  3. Hold the button pressed for at least 8 seconds. One long beep indicates the VOCOM device is resetting back to access point mode.
